60Hz Hot Ink Roll Coder / Expiry Date Printing Machine 36x40mm 3.0T

Ask Lasest Price
Brand Name :	DIKAI
Model Number :	DK-1100B
Price :	US $450
Payment Terms :	T/T
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

60Hz Hot Ink Roll Coder / Expiry Date Printing Machine 36x40mm 3.0T

Print Batch Date Expiry, Hot Ink Roller Coding Machine, Dk-1100b Hot Ink Roll Coder

Products Description

DK-1100B Ink Roll Coder is a continuous coding machine which was designed to be integrated
to flow packers, continuous packing
machines to print MFG/ EXP date, lot number, serial number with a max print speed of 300 prints/ minute, surface speed is up to 35
meters/ minute. It's been widely used in industries like food, daily chemicals, daily tissue, medicine making machines, etc.
Cumulative sales since 2001 had been reached 100, 000 sets, serving more than 4000+ end users like Mondelez, Pepsico, Yili Dairy, cooperating with over 200 packing machine manufacturers in China. Exporting to nearly 100 countries and regions since 2006 through our worldwide distribution network.

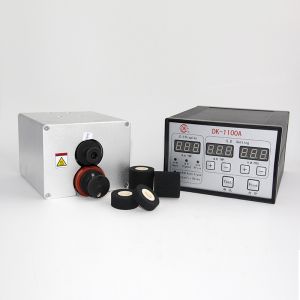

Main Components

Controller

Printer Unit

Bracket

Specification

Product name	DK-1100B Ink Roll Coder
Print Area	≤13lines,max20 characters/ line
Type Sizes	Standard 3.0T, 2.5*7T, 3.5R (or customized size)
Pouch Length	≥38mm(4-up printer) ≥75mm(2-up printer)
Print Frequency	≤300 prints/ min
Ink Roll Required	3632mm/ 3635mm/ 36*40mm
Eletrictiy	AC220+10V,50/60Hz
Power	130W,2A fuse
Print Speed	35 meters/ minute
Print Contents	MFG/ EXP date, lot number, serial number, etc

Application

Hot Ink Roll Coder / Online Machine is use of automatic on-line contact coding machine for neat, sharp & registered print Batch Number, Date of Manufacturing, Expiry Date, Prices, best before dates, traceability codes, batch codes & other statutory information the with the help of the Characters with Aid of Brass Letters. The Print wheel equipped to Dry-Ink Coding Machine can be used for both R arrange and T arrange of characters. In T arrange Solid-ink Coding Machine can print 1 to 10 characters in each line. In R arrange Solid-ink Coding Machine can print 1 to 8 characters in each line. It is sensor base machine so it takes one by one and prints at the accurate place.

Print Results

Packaging & Shipping

● Standard Export Cartons with soft protection inside● Suitable for international sea, air, fast courier shipping● Package Size: 77* 33*27cm (with 500mm bracket)
● Gross Weight: 9.5kg
● Regular Lead Time: 1-2 weeks after order confirmation & payment

After Sales Service

Technical Supports

--R&D supports;
--Operation Manual Guidance

--Within 24-hour professional online supports

--Video supports

--Possible onsite supports...
